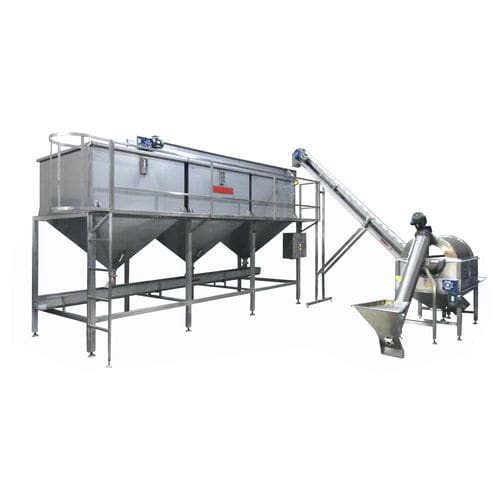

DRIED LEGUME WASHING AND SOAKING UNIT
It consists of below equipment:
SCREW ELEVATOR WITH INFEED HOPPER (2m.xØ22cm)
Construction made of AISI 304 stainless Steel.
Driven by motor+reducer.
Electrical consumption: 380VAC; 50Hz; 3 phasses, 1,1kw.
DRUM WASHER (1,5m.xØ80cm)
Construction made of AISI 304 stainless Steel.
Drum perforated with 3*20mm. opened holes.
Driven by motor+reducer.
Water spray tube at center of drum.
Electrical consumption: 380VAC; 50Hz; 3 phasses, 0,75kw.
Water consumption: 500 litres/hour (If Pwater=3bar) – Water Inlet : G 1” female
Waste water discharge outlet: Ø110mm
ELEVATOR (Length:5,25m.xBelt width:30cm.)
product supported PVC belt.
Construction made of AISI 304 stainless steel.
Driven by motor+reducer.
Electrical consumption: 380VAC; 50Hz; 3 phasses, 0,75kw.
DRIED GRAIN DISTRIBUTING CONVEYOR (Length:5m.xBelt width:25cm.)
PVC belt, with pneumatic controlled 2 side exits+1 front discharge
2 side exits with pneumatic cylinder controlled by manual.
Construction made of AISI 304 stainless steel.
Electrical consumption: 380VAC; 50Hz; 3 phasses, 0,55kw. -
SOAKING TANKS ( 4500 lt. x 3 pieces ) AND CHASSIS
Construction made of AISI 304 stainless steel.
Tanks are square mouth and bottom are conical.
There is one DN125 butterfly manual valve under each tank.
Platform, one ladder and guard profiles on the one long side.
Water consumption: 1 litre of water / each 1kg of dried chickpea
Pressured Air Inlet: with Ø8*1mm hose (Pair=6bar)
CHANNEL (5,5m.x30cm.)
Construction made of AISI 304 stainless steel. Width:300mm.*height:200mm. section profile.
