Liquid food products and beverage filter TRBS

strainercentrifugalpressure

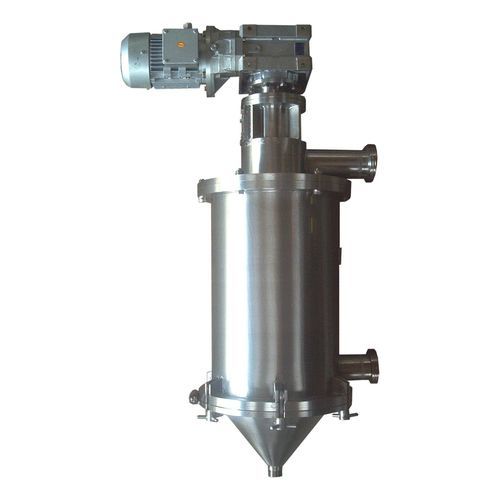

ROTARY BRUSH STRAINER It is self-cleaning inline filter that remove coarse particles from process fluids. They protect downstream equipment, such as pumps, separators, and heat exchangers, from potential damage due to clogging and abrasive wear. It can be applied to capture particles larger than 1 mm after pressing. The filter consists of scraper mixers rotated by motor + reducer, a cylindrical perforated filter and a cylindrical body. Particles larger than the sieve hole diameter are retained by rotary scrapers that rotate by scraping the inner surface of the sieve. These collapse onto the conical base. • Complete AISI 304 quality Cr.Ni. from material, • The filter hole will be ø1mm. Filter surface = 0.5m² (one of them) • Each one has four Teflon scrapers. • Scraper mixers are driven by electric motor + reducer. • The body will be manufactured suitable for 3 bar operating pressure. • A 1 1/4” male nipple will be welded at the bottom for waste discharge and a ½” female sleeve will be welded at the top. • DN80 fitting for product inlet and outlet.
