Dispensing preparation station TBPU02
for the food industrybrine

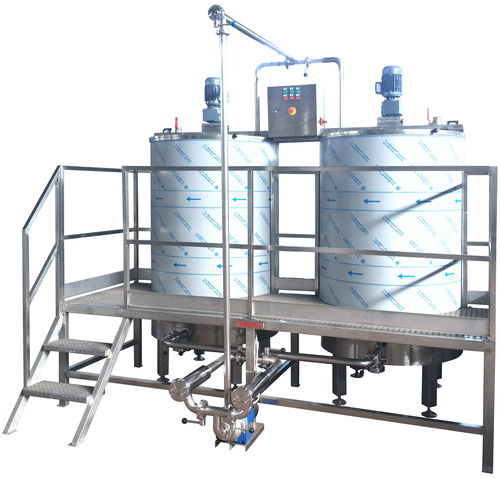

Dispensing preparation station - TBPU02 - TABANLI MAKINA SAN VE TIC LTD STI - for the food industry / brine
Dispensing preparation station - TBPU02 - TABANLI MAKINA SAN VE TIC LTD STI - for the food industry / brine
Add to favorites
Compare this product


Characteristics

Associated function
dispensing
Applications
for the food industry, brine

Description

BRINE/SYRUP/SOUP PREPARATION UNIT There will be two pieces of Preparation Tanks (1000 liters or 1500 liters depending on customer`s required capacity): - Tanks` inner jackets are made from AISI 316 Cr-Ni stainless steel and all of the other construction made from AISI 304 Cr-Nİ stainless steel. - Tanks have welded indirect steam coils insulated by glass wool at the outside of the first jacket. - Also Tanks have below equipment; - openable lids, female nipples for Steam inlet and condensate outlet separately, discharge valves, vertical agitators with propeller driven by motoreducer, temperature gauge, steam valve, safety relief valve, steam trap and pressure gauge. - Temperature will be controlled by operator as manually with manual steam valve or automated by PID temperature controller unit with modulated steam valves as an option. Also There is By-Pass Line Filter System included bellows: Ø51mm butterfly valves at the bottom product outlet of these two tanks will be connected by a double-filter with by-pass line and union connections at the end of this filter system. Pipes, fittings, valves will be made of AISI 316 quality stainless steel. Also a centrifugal pump can be added to this line as optional for circulating of prepared products and pump it to required place. Also There is a Front Operator Platform For The Preparation Tanks included belows: in front of both tanks; There will be a single navigation platform in AISI 304 quality stainless steel material, with stair, edge railing, The part that is walked on the platform is covered with embossed perforated stainless sheet to prevent foot slipping.
