Knife pre-crusher TRCC

discfoodstainless steel

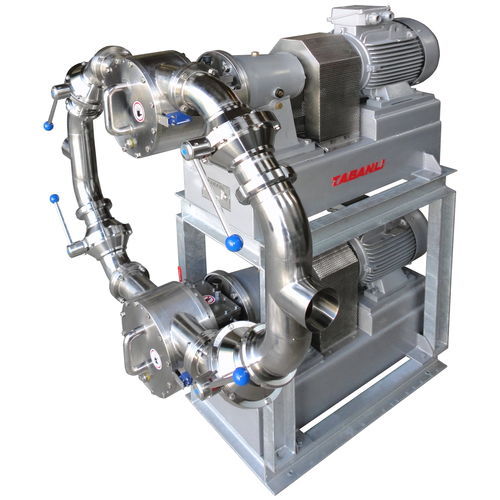

PARALLEL PAIR GROUP ROTARY CIRCULAR BLADED TOMATO CRUSHER It has two-storey crushers, upper and lower, and these two crushers are parallel connected to each other with bypass lines. In each Breaker; body AISI 304 Cr.Ni. material, crusher blades 3mm thick, Ø278mm It has circular and saw-edged gears in diameter and there are 6 pieces. Crusher main stainless steel body outer diameter is Ø320mm. Bearing Sleeves and plates are made of painted iron material. NPU beam chassis is a hot galvanized, welded and bolted steel construction. It has double mechanical seals from inside and outside. Ø100mm with flanges from top to mouth. There is an inlet-outlet pipe. There is a bypass line with glands and ball valves on the flanges of these pipes. It is motor driven with 7.5kw power and has a coupling. A safety switch is placed on the covers of the crusher body.
