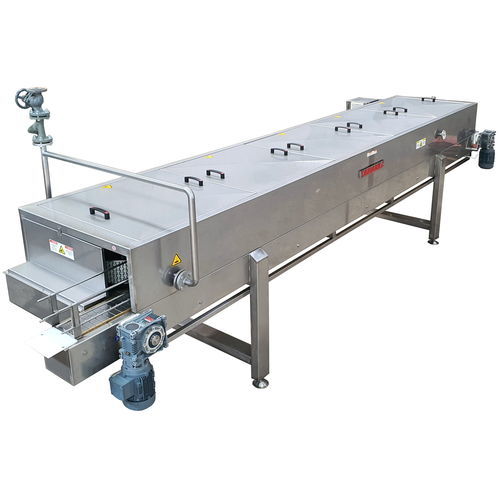

EXHAUST TUNNEL
for exhausting of gas (degassing) from the brine in the tins or jars
• - Construction in AISI 304 Cr-Ni stainless steel as generally, but only bottom tub part in AISI 316 Cr-Ni stainless steel.
• - St. steel chain belt `s width is 6” .
• - Tunnel length is 5m. and width is 92cm.
• - Total 5 can lanes of tunnel. (3 forward + 2 reverse)
• - It is suitable for both 1/1 and 5/1 round tins by adjustable side guards.
• - 5 easily openable lids on the tunnel.
• - Heating by three direct steam tubes.
• - One manually main steam valve and a thermometer.
• - Single Electronic Inverter controlled chain belts driven by two motoreducers.
• - Electrical panel included.
• - Overall Dimensions about 6025mm.*920mm.*1335mm (L*W*H).
