Relative pressure transducer 2801 membrane4-20 mA2-wire
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- membrane
- Output
- 4-20 mA, 2-wire
- Supply voltage
- 24 Vdc
- Mounting
- threaded
- Material
- stainless steel
- Protection level
- rugged
- Pressure range
Max.: 20,000 psi
Min.: 0 psi
- Precision
0.25 %, 0.5 %
- Process temperature
Max.: 200 °F
(93 °C)Min.: -65 °F
(-54 °C)
Description

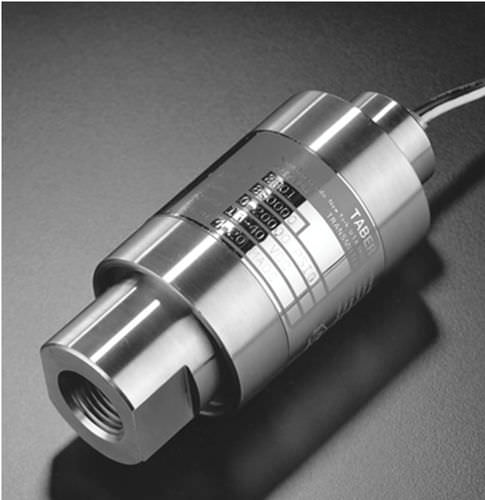

Taber's Model 2801 industrial pressure transducer is an ultra-rugged instrument designed for extreme industrial environments involving hazards, heat, vibration, and EMI. Popular with the basic metals processing industry, the Model 2801 provides a 4-20 mA output signal with ultra low noise and protection against EMI/RFI caused by rotating machinery, electrical switch gear, or portable radio communication equipment. The Model 2801 also features a fully welded stainless steel construction with NPT connections for conduit installation in hazardous or extremely dirty and oily environments
Typical Model 2801 applications include:
Steel and Aluminum Rolling Mills
Fuel Storage & Handling Systems
Oil & Gas Exploration
Recovery systems
