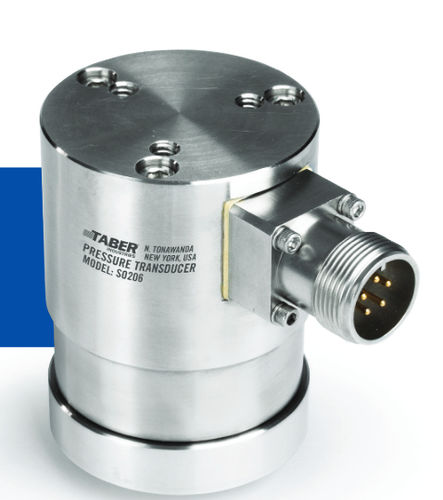

Relative pressure transducer S206

membraneanalog5 VDC

For decades, Taber's Model S0206 pressure transducer has been the benchmark for test stand pressure transducers. Test engineers worldwide have long specified the Model S0206 for their rigorous test regimes because of this transducers mechanical overload protection, a removable pressure cap, and replaceable stainless steel diaphragms. The removable cap facilitates the inspection and cleaning of the pressure cavity and, if necessary, allows replacement of the stainless steel diaphragms. This is especially important when jet or rocket engine exhaust contaminants foul the pressure cavity. Redesigned and improved to meet the demands of today's jet engine and rocket engine testing market, the updated Model S0206 incorporates all the performance characteristics and ruggedness of the original Model 206 but offers improved accuracy performance, increased pressure ranges, secondary containment, and alternate output capabilities. Typical Model S0206 applications include: Jet & Rocket Engine Test Stands Pressurized Vessel Testing Commercial & Military Ordnance Testing Hydraulic Systems Testing Water Hammer situations
