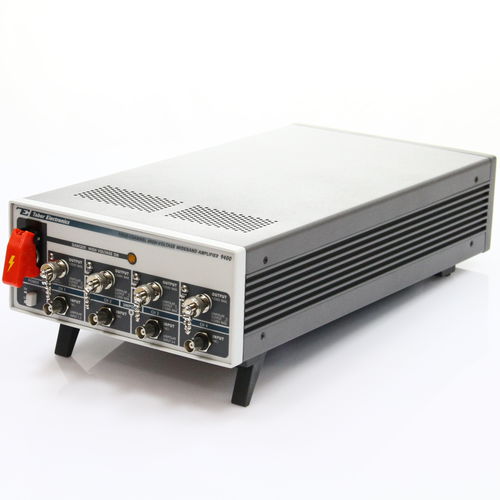

Signal amplifier 9400powervoltage outputcurrent output
Add to favorites
Compare this product
Characteristics
- Type
- signal, power
- Other characteristics
- voltage output, current output, wide-band, benchtop, four-channel
- Voltage
400 V
- Current
50 mA
Description
Model 9400 was designed as a general purpose, wide band and high voltage amplifier however, with specific applications in mind. It has four channels built in a small case size to save space and cost but without compromising bandwidth and signal integrity.
Four independent channels
High voltage output to 400Vp-p (200V)
Output current to 50mA
Full power bandwidth from DC to >500kHz
Slew rate to 400V/s
Monitor Outputs for each channel
Precise signal amplification for multiple applications
Compatible with any of the Tabor waveform generators
Special unipolar mode for MEMS engine drivers
