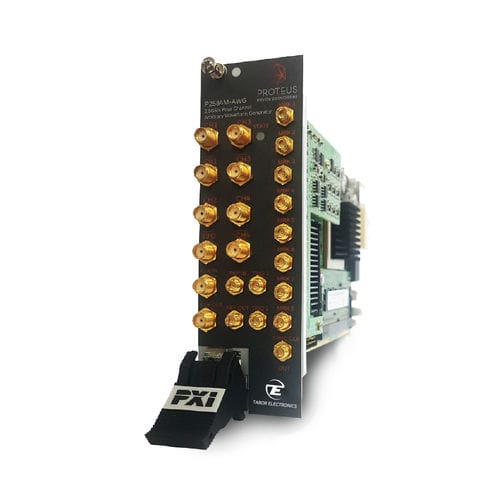

Arbitrary waveform generator P2584M

4-channelPXIe

The Proteus P2584M, is a PXIe based, 2.5GS/s, four channel arbitrary waveform generator offering technologically advanced options and configurations such as, a dual channel 2.7GS/s digitizer with 9GHz bandwidth, to transform the instrument to an arbitrary waveform transceiver. The P2584M offers industry leading performance Including an innovative task oriented programming, real time data streaming, fast feedback loop for environment dependent waveform generation and user customizable FPGA for application specific solutions. Four channel 2.5GS/s AWG Dual channel, 8GHz Bandwidth, 2.7GS/s 12 bit digitizer option for a complete arbitrary waveform transceiver system Integrated NCO for digital upconverting to microwave frequencies Excellent phase noise and spurious performance Feedback control system for conditional waveform generation Modular PXI Express platform, easily scalable to hundreds of channels. High speed PCIe GEN3 x8 lanes communication interface Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms Real time data streaming directly to the FPGA for continuous and infinite waveform generation User customizable FPGA for demodulation, digital filtering and application specific solutions Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
