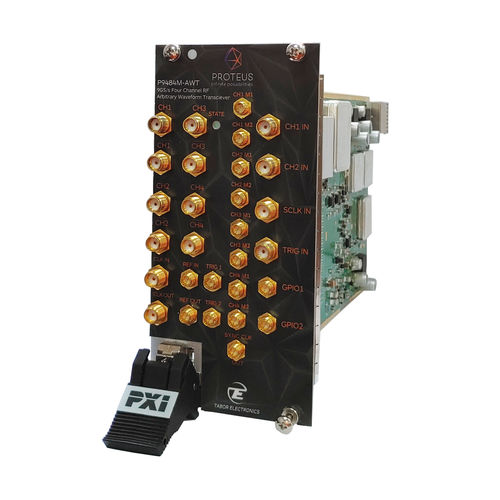

Arbitrary waveform generator P9484M

RFcompactPXIe

Based on PXI Express industry standard the modular architecture can easily scale up to hundreds of channels, while keeping the required space to a minimum. The compact form size enables up to 4 generator output channels and 2 digitizer input channels to occupy only 3 PXI slots. The new addition to the Proteus arbitrary waveform generator series offers 8GHz Bandwidth, 5.4GS/s 12 bit digitizer option for a feedback control system, and conditional waveform generation. # Four channels 9GS/s 16 bit, AWG & AWT configurations # 8GHz Bandwidth, 5.4GS/s 12 bit digitizer option for feedback control system and conditional waveform generation # Integrated digital up-converter to RF frequencies for coherent multi-channel RF applications across multiple modules # Excellent phase noise and spurious performance # Integrated digital up-converter to RF frequencies for coherent multi-channel RF applications across multiple modules # Modular and space efficient PXI Express platform, easily scalable to hundreds of channels. # High speed PCIe GEN3 x8 lanes communication interface # Up to 16GS waveform memory with the ability to simultaneously generate and download waveforms # Real time data streaming directly to the FPGA for continuous and infinite waveform generation # Customizable FPGA for use embedded IP and application specific requirements # Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
