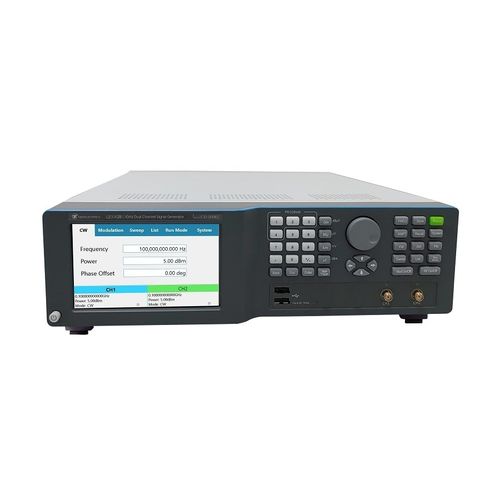

Signal generator LS6082B

RFUSBdual-channel

The LS6082B, 6GHz dual channel RF Analog Signal Generator, offers industry leading performance, in an easy to use, space efficient, benchtop box. The LS6082B features two phase coherent channels, exceptionally fast switching speed, superior signal integrity and purity and all the necessary modulated signals for analog communication systems. The LS6082B was designed to offer excellent performance and abilities combined with an affordable price tag, needed from the R&D benches to the production lines. # 6GHz multi-channel RF analog signal generator # Dual phase coherent channels in a single box # Extremely Fast Switching speed of <100us # AM, FM, PM, Sweep & Pulse Modulation # Exceptionally Low Phase Noise of -145dBc/Hz @100MHz and 10@kHz offset # USB and LAN interfaces # Small form factor and space efficient benchtop platform # Remotely programmable via MATLAB, Python, LabVIEW and other software programming environments. # Removable SD card for instrument security # Easy to use benchtop platform with 5" touch screen and user friendly GUI
