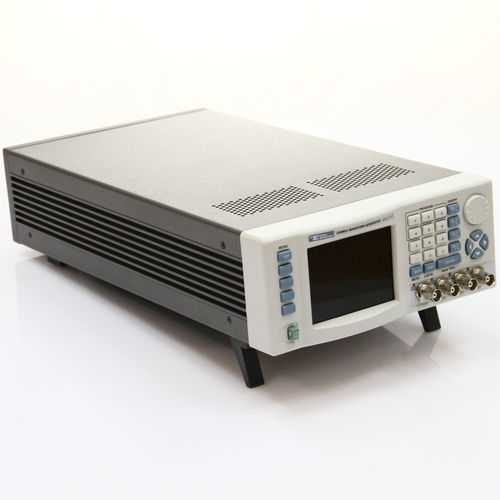

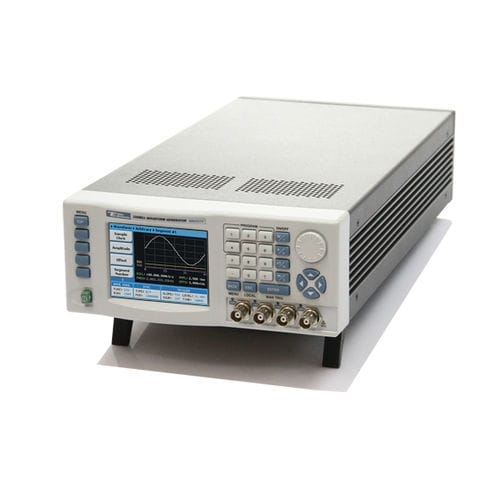

Arbitrary waveform generator WW2074

USB4-channel

The WW2074 offer a 200 MS/s four-channel universal waveform synthesizer. Each is built in a small case size to save space and cost but without compromising bandwidth and signal integrity. The instrument outputs either standard or user-defined waveforms in the range of 100µHz and up to 80MHz. Four-channel 200 MS/s waveform generator Sine waves to 80MHz and square to 50MHz 16 Bit amplitude resolution Up to 4M waveform memory 10 Vpp into 50Ω, double into open circuit Multiple run modes: trigger, timer and trigger delay Four separate SYNC outputs Powerful sequence generator links and loops segments in user-defined fashion. Stores up to 10 different sequence tables High resolution 3.8 LCD, color display LAN, USB and GPIB interfaces Multi-Instrument synchronization ArbConnection software for easy waveform creation
