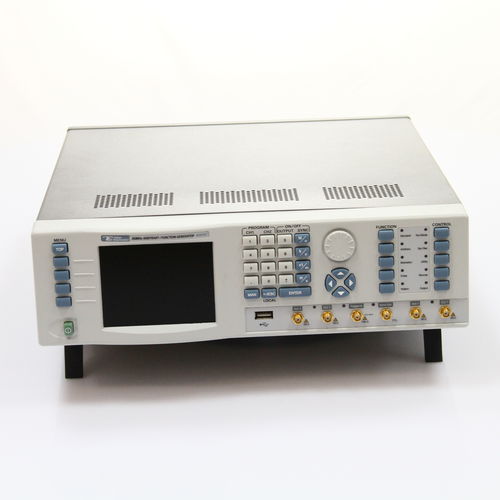

Pattern generator WS8352

pulsecompact

Tabors WS8352 is a 350MHz dual channel generator with the functionality of a function, arbitrary, modulation and pulse/pattern generator, all in one easy to use, high performance, compact stand alone bench top, which enables engineers to test analog, digital and mixed signals devices with a single instrument. Dual-channel Arbitrary / Pulse / Function Generator Differential outputs configured as separate or synchronized 350MHz sine and 250MHz square waves 14-Bit, 2GS/s, 512Kpoint arbitrary waveforms 4Vp-p into 50Ω (8Vp-p differential), double into open circuit 10 built-in waveforms: sine, square, pulse, triangle, ramp (saw-tooth), sinc, gaussian, exponential , DC, repetitive or white noise AM, FM, FSK, PSK and Sweep modulations Continuous, triggered, gate and burst modes Powerful pulse/pattern composer for analog, digital and mixed signals User friendly 4 color LCD display Remote control through LAN, USB and GPIB Store/recall capability on disk-on-key or 1GB internal memory Free ArbConnection software, IVI and MATLAB drivers LXI Class C compliant
