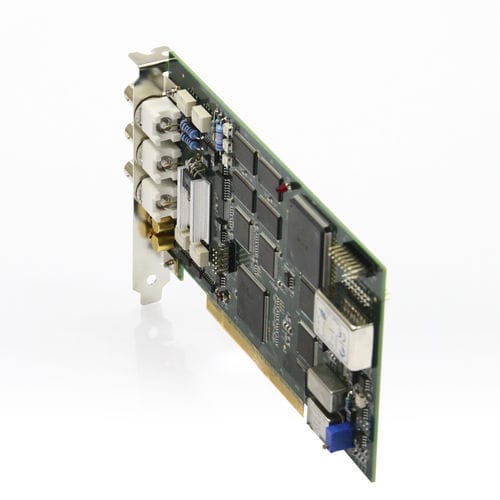

Arbitrary waveform generator 5325

single-channelPCI card

Model 5325 is a Single-Channel Arbitrary Waveform Generator that combines many powerful functions in one small package. Supplied free with the instrument is ArbConnection software, which is used for controlling the 5325 and for generating, editing and downloading waveforms from a remote computer. Single-channel 50MS/s PCI-Based waveform generator Sine waves to 25MHz, Square to 15MHz SINE OUT to 50MHz, 1Vp-p 14 Bit vertical resolution 1M waveform memory 1 ppm clock accuracy and stability Extensive modulation capabilities AM, FM, Arbitrary FM, FSK, Ramped FSK and Sweep 14 digits sample clock frequency setting, limited by 1µS/s Waveform sequencing with up to 4096 segments and sequences Occupies a single slot only Ultra fast waveform downloads using DMA ArbConnection software for easy waveform creation
