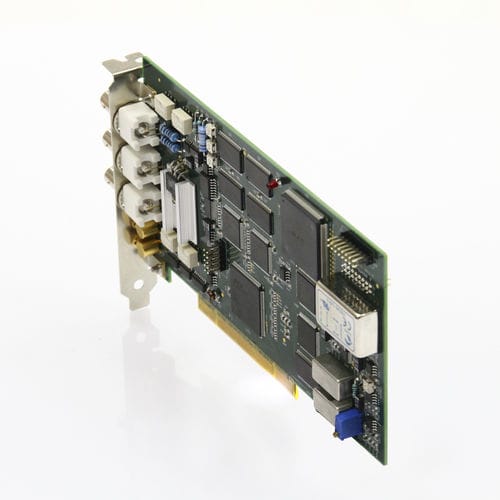

Arbitrary waveform generator 5300

functionsingle-channelPCI card

Model 5300 is a Single-Channel Arbitrary Waveform / Function Generator that combines many powerful functions in one small package. Supplied free with the instrument is ArbConnection software, which is used for controlling the 5300 and for generating, editing and downloading waveforms from a remote computer. Single-channel 125 MS/s PCI-Based waveform generator Sine waves to 50MHz, Square to 30MHz SINE OUT to 125MHz, 1Vp-p 14 Bit vertical resolution 2M waveform memory 1 ppm clock accuracy and stability Extensive modulation capabilities AM, FM, Arbitrary FM, FSK, Ramped FSK and Sweep 14 digits sample clock frequency setting, limited by 1µS/s Waveform sequencing with up to 4096 segments and sequences Occupies a single slot only Ultra fast waveform downloads using DMA ArbConnection software for easy waveform creation
