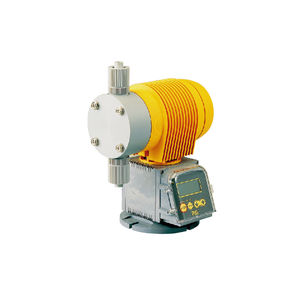

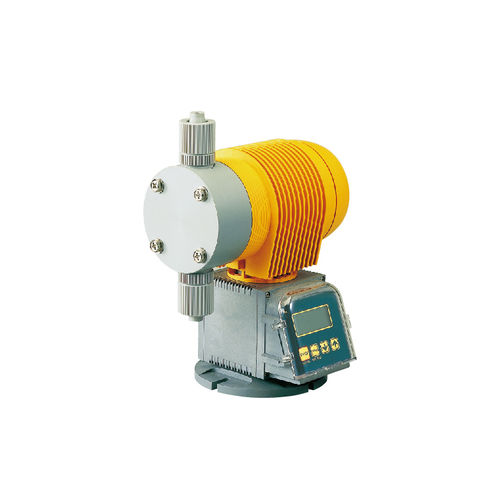

Diaphragm pump PZD seriesfor chemicalssolenoid-drivenindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for chemicals
- Operation
- solenoid-driven
- Domain
- industrial
- Applications
- metering, transfer, discharge, injection
- Fluid specification
- for high-viscosity fluids
- Flow
0.36 l/min, 0.54 l/min
(0.0951 us gal/min, 0.14265 us gal/min)- Pressure
200,000 Pa, 300,000 Pa
(29.008 psi, 43.511 psi)
Description
Functions Common to All Models
Enter Injection Amounts Directly and Select From Three Patterns of Injection Amount Settings
Set by stroke speed
Setting range
1 to 300 strokes/min (can be set to 1 stroke/min)
Set by discharge amount
Setting range
From 0.1 (maximum discharge amount for selected model)/mL/min (can be set to 0.1mL/min)
Set by percent
Setting range
1 to 100% (for a maximum stroke count (300 strokes/min) of 100%, can be set per 1%)
Free Power Supply
100 to 240 VAC (±10%) operation means you do not need to worry about voltage fluctuations at the site. This pump can be used at a variety of locations and for a variety of purposes.
Can Be Used With High Viscosity Liquids
Also use for polymer coagulant injections.
*Transfer of high viscosity liquids may not reach the prescribed maximum discharge volume. To transfer high viscosity liquids, please contact us for application support.
