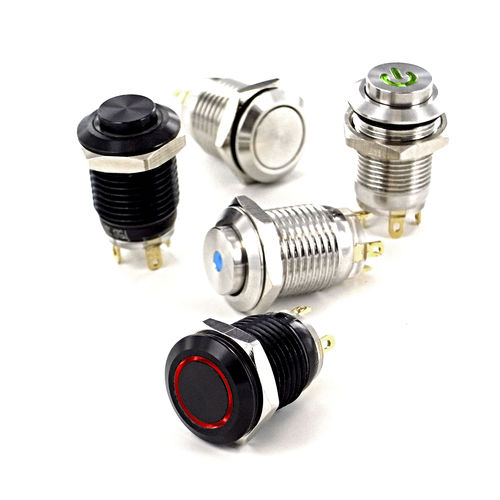

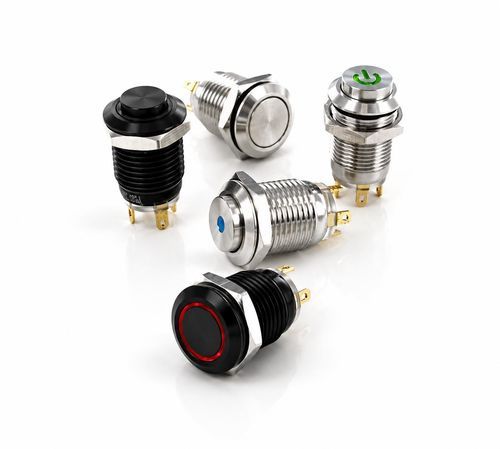

LED-illuminated push-button switch SOAV112 series

springvandal-proofIP67

Safety pushbutton, drilling diameter 12mm, contact Normally open, LED illuminated or not, waterproof IP67, anti-vandalism. Stainless steel or anodized aluminum. • Compact size • excellent tactile feedback • LED illuminated versions • momentary or latched • NO contact • 3A@ 220 V • specific wiring upon request • specitiC marking upon request • Max voltage : 250 V • Max current/voltage with resistive load: • 2 A@ 220 Vac / 2A 24 Vdc • Initial contact resistance : 50 mQ max • Insulation resistance : 1000 MO mini at 500Vdc • Electrical life : 100.000 cycles at full load • Dielectric strength : 1000 VAC, 50 Hz, 50 seconds • LED volt age : see Build your part nunmber section • LED typical life: 40.000 hours • Actuation force : from 2 to 5 Newtons • Travel: from 1.5mm to 2.5mm • Mechanical life: 1.000.000 cycles minimum • Switchbase material: PC • Body material : see Build your part number section • Button material: see Build your part number section • Lugs material: gold plated copper • Contact material: gold plated silver Operating temperature = from 25°C to +55°C Ingress Protection to IP65 or IP67 front panel Compliant with IEC60947-5-1 standard Compliant with GB140 48.5 standard Typical drilling diameter : 12.5mm Panel ihickness : 1O mm max. Minimum pitch for matrix installation :20 x 20 mm Hand soldering : 300°C max. during 5 seconds
