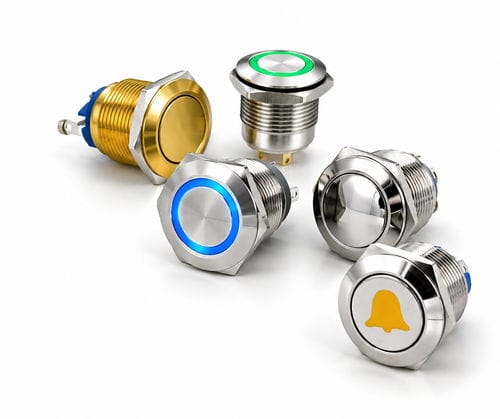

Vandal-proof push-button switch SOAV119 series

springsealedrugged

METALLIC ANTI-VANDAL PUSH BUTTON WITH 19MM HOLE DIAMETER. • very good tactile feeling • light versions • momentary • contact NO • 3A @ 220V • IP67 / IK10 • flat on request • specific wiring on request • specific light logo on request • Product fully customizable to specifications thanks toU.DESIGN excellent tactile feedback LED illuminated versions momentary NO contact 3A@ 220 V specitic wiring upon request cUstom illuminated logo upon request IP67/1K10 Max voltage: 250 V Max current/voltage with resistive load : 3 A@ 220 Vac / 5A 24 Vdc Initial contact resistance : 50 mQ max Insulation resistance : 1000 MA mini at 500Vdc Electrical life : 100.000 cycles at full load Dielectric strength : 1000 VAC, 50 Hz, 50 seconds LED voltage : see Build your part number section LED typical life: 40.000 hours Actuation force: from 2 to 5 Newtons Travel: from 1.5mm to 2.5mm Mechanical life: 1.000.000 cycles minimum Switchbase material : PA66G30 Body material: see Build your part number section Button material : see Build your part mumber section Contact material: silver plated Operating temperature = from -30°C to +85°C Non illuminated versions are IK10 compliant Ingress Protection to IP67 Compliant with IEC60947-5-1 standard Compliant with GB14048.5 standard Typical drilling diameter : 19.5mm Panel thickness : 14mm max. Minimum pitch for matrix installation :24 x 24 mm Hand soldering : 300°C max. during 5 seconds
