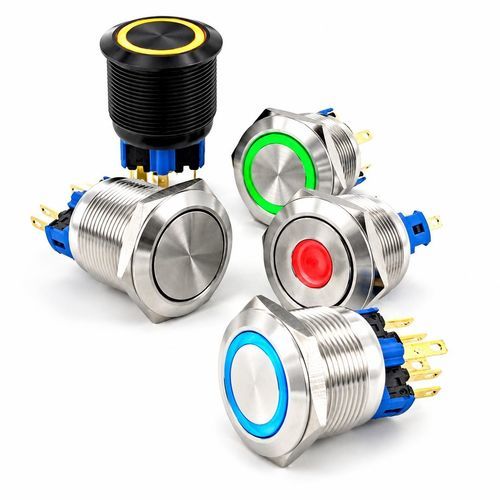

Vandal-proof push-button switch SOAV4 series
springwaterproofdust-proof

vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
Add to favorites
Compare this product


Characteristics

Type
spring
Protection level
vandal-proof, waterproof, dust-proof, robust, weatherproof, vibration-resistant, IK 10, IP67
Other characteristics
LED-illuminated, stainless steel, aluminum, panel-mount, LED, mechanical, DC, on/off, momentary, latching action, with indicator light, electromechanical, flat, AC, ring

Description

VANDAL-PROOF SECURITY PUSH BUTTON WITH 22MM DRILLING DIAMETER. • large actuation surtace • excellent tactile feedback • illuminated versions with super bright LED • momentary or latched • up to 2NO/2NC DPDT • 3A @ 220 V • specific wiring upon reque • specific marking upon req Max voltage: 250 V Max current/voltage with resistive load 3A@ 220Vac /5A @ 24 Vdc Initial contact resistance: 50 mQ max Insulation resistance 1000 MQ mini at 500Vdc Electricallife: 100.000 cycles at full load Dielectric strength: 1500 VAC, 50Hz, 50 seconds LED voltage: see Build you part number section LED typical life: 40.000 hours Actuation force: from 2 to 5 Newtons Travel: from 1.5mm to 2.5mm Mechanical life: 500.000 cycles Switchbase material: PA66 Body material: see Build you part number section Button material: see Build you part number section Lugs material gold plated copper Contact material: gold plated silver Operating temperature = from -30°C to +85°C Protection grade to IP67 - frontpanel Shock resistance: IK10 Compliant with IEC60947-5-1 standard Compliant with GB14048.5 standard Typical drilling diameter : 22.5mm Panel thickness: 12mm max. Minimum pitch for matrix installation: 27 x 27 mm Hand soldering : 300°C max. during 5 seconds
