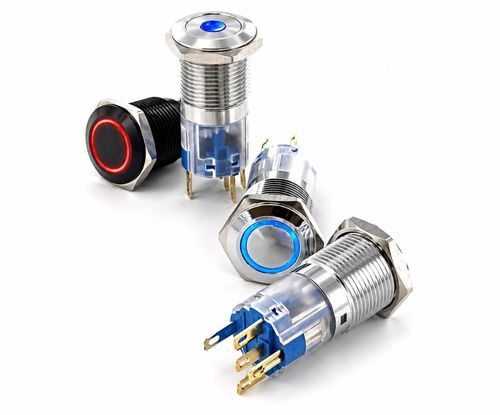

Vandal-proof push-button switch SOAV2 series
springwaterproofdust-proof

vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
Add to favorites
Compare this product


Characteristics

Type
spring
Protection level
vandal-proof, waterproof, dust-proof, water-resistant, rugged, weatherproof, vibration-resistant, IK 10, IP67
Other characteristics
illuminated, stainless steel, aluminum, panel-mount, LED, on/off, latching action, ring, electromechanical, momentary

Description

METALLIC ANTI-VANDAL PUSH BUTTON WITH 16MM HOLE DIAMETER. excellent tactile feedback illuminated versions momentary or latched up to 2NO/2NC form C 3A 220 V specitic wiring upon request specific marking upon request Max voltage : 250 V Max current/voltage with resistive load: 3 A@ 220Vac /5A@ 24 Vdc Initial contact resistance:50 mQ max Insulation resistance : 1 GQ mini at 500Vdc Electrical life : 100.000 cycles at full load Dielectric strength 100O VAC, 50 Hz, 50 seconds LED voltage : see Build your part number section, LED typical life : 40.000 hours Actuation force : from 2io 5 Newtons Travel: from 1.5 mm to 2.5mm Mechanical life: 1.000.000 cycles Switchbase material : PC Body material: see Build your part number section Button material : see Build your part number sect ion, Lugs material : gold plated copper Contact material : gold plated silver Operating temperature = from -25°C to +55°C Protection grade to IP67 - front panel Compliant with IEC60947-5-1 standard Compliant with GB140 48.5 standard Typical drilling diameter: 16.5mm Panel thickness : 15 mm max. Minimum pitch for matrix installation : 24 x 24 mm Hand soldering : 300°C max. during 5 seconds
