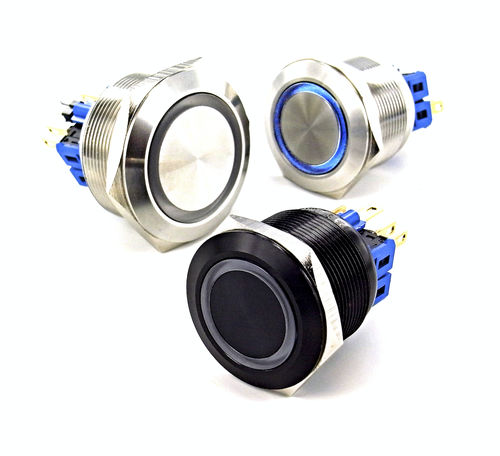

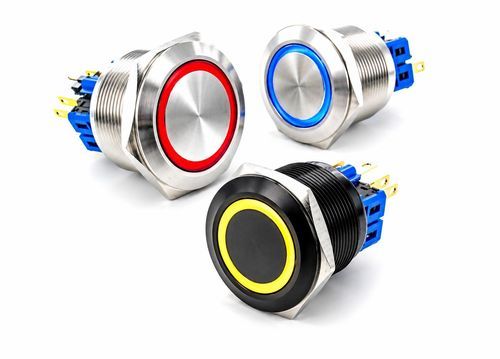

Vandal-proof push-button switch SOAV5 series

springwaterproofdust-proof

The SOAV5 has a body that fits in a 25mm or 30mm diameter hole. Fitted with an NO/NC contact (2 poles optional), it is easy to operate thanks to its large activation surface. Its wide luminous ring makes it very visible on the panel. Finally, its Quick'In connector (optional) allows easy integration and ensures rapid assembly/disassembly during maintenance operations. • large actuation surface • excellent tactile feedback • illuminated ring • momentary or latched • up to 2NO/2NC form B • 3A@ 220V • specific wiring upon request • specific marking upon request Max voltage: 250V Max current/voltage with resistive load: 3A@ 220Vac/5A @ 24 Vdc Initial contact resistance: 50 mQ max Insulation resistance: 1000 MQ mini at 500Vdc Electricallife: 100.000 cycles at full load Dielectric strength: 1500 VAC, 50Hz, 50 seconds LED voltage: see Build you part number section LED typical life: 40.000 hours Actuation force : from 2 to 5 Newtons Travel: from 1.5mm to 2.5mm Mechanical life: 500.000 cycles Switchbase material: PA66 Body material : see Build you part number section Button material: see Build you part number section Lugs material gold plated copper Contact material: gold plated silver Operating temperature = from -30°C to +85°C Protection grade to IP67 - frontpanel Shock resistance: IK10 Compliant with IEC60947-5-1 standard Compliant with GB14048.5 standard Typical drilling diameter: 25.5mm/30.5mm Panel thickness : 12mm max. Minimum pitch for matrix installation: 30 x 30 mm Hand soldering: 300°C max. during 5 seconds
