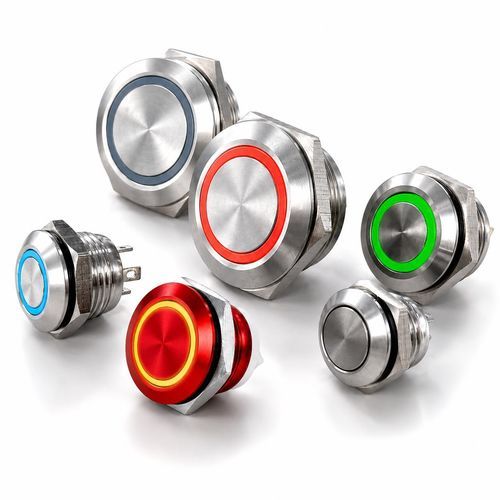

ALFA is available in 12, 16, 19, 22 or 25mm hole diameters. Equipped with an NO contact (momentary action), the buttons in this range are designed to integrate easily into any design thanks to their very small size of 12.1mm.
Its large luminous ring makes it very visible on the panel. In addition, its reduced stroke of 0.5mm gives it an excellent tactile feeling.
• low profile (12.1mm at the back of the panel)
• excellent tactile feeling
• luminous crown
• NO form X, momentary
• 0.3A @ 24 Vdc
• specific wiring
• specific laser marking
• flat
• custom light logo
Max voltage: 24 Vdc
Max current/voltage with resistive load
0.3 A 24vdc
Initial contact resistance: 50 mAmax
Insulation resistance : 120 M mini
Electrical lite: 200.000 cycles at tull load
Dielectric strength: 1500 VAC, 50H2, 50 seconds
LED voltage: see Bxild yow part nomber section
LED tupical lite: 4O.000 hours
Actuation force: S Newtons
Travel:0.5mm
Mechanical lite : 1.000.000 cycles minimum
Switchbase material : PC
Body material: Stainless steel
Button material: Stainless steel
Lugs material: gold plated copper
Operating temperature = from 2s"C to +55 c
Ingress Protection IP67 trontpanel
Vibrations resistance: 10 to 55Hz, amplitude 1.2mm pp
Typical drilling diameter Bdld yo w part number section
Hand soldering : 260°C max. during 3 seconds
