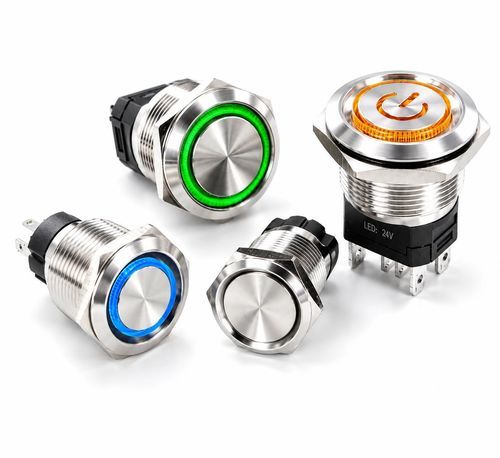

Vandal-proof push-button switch ORION Series
springwaterproofdust-proof

vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
vandal-proof push-button switch
Add to favorites
Compare this product


Characteristics

Type
spring
Protection level
vandal-proof, waterproof, dust-proof, rugged, rugged, weatherproof, IK 10, corrosion-resistant, IP67
Other characteristics
LED, illuminated, snap-action, stainless steel, panel-mount, mechanical, DC, on/off, latching action, momentary, ring, AC, electromechanical

Description

The ORION range is available in 16, 19, 22 or 25mm hole diameters. Equipped with an NO contact (momentary or maintained action), the buttons in this range are designed to blend easily into any design. In addition, the ORAC quick connector available as an option allows easy integration of the button on the assembly line or during on-site maintenance. Their large luminous ring makes them very visible on the panel. Finally, their excellent tactile feedback makes them very pleasant to use. • excellent tactile feeling • luminous crown or luminous Power-on logo • up to 2NO form A, momentary or maintained • 15A @ 250 VAC or 20A @ 12 VDC • specific wiring on request / quick connector • specific marking on request High current switching : till 20 Amps unparalleled tactile feedback illuminated versions till 2NO form A IP67 from 15A 250VAC to 20A 12VDC Contact type : ON-(OFF) or ON-OFF Initial contact resistance 50mQ max Insulation resistance : 100 MQ min, DC500V Electrical lifecycle: 100.000 cycles at full load Dielectric strength : 2000VAC, 60 secs Operating force : 11 N Travel : from 1,8 to 3,5 mm Materials Body: Stainless steel 304 Button: Stainless steel 316 Pins: nickeled H65 Contact : Silver Mechanical lifecycle : 1.000.000 cycles Operating temperature : 30°C to +80°C Impact rating : IK10 Ingress protection rating : IP67 Cutout : from 16,5 to 25,5 mm Panel thickness : from 0,75 to 4mm

Catalogs

No catalogs are available for this product.

See all of TactHill by Kynoppe‘s catalogs
