Lever switch 88 Series

single-poleilluminatedpower

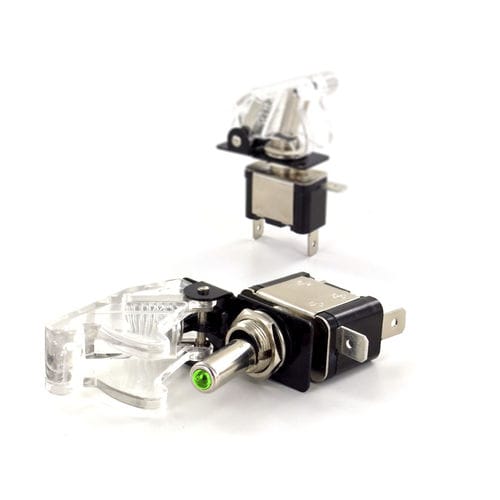

Equipped with an optional protective housing, this LED rocker switch is sure to add some flair (and flare!) to your project. With a nominal voltage of12V max, the LED lights up atfrom 3Vso you can also use it with lower voltages. • The anode of the LED is connected via a resistor to the pin with a "beacon" symbol. • The cathode of the LED is connected to the "ground" pin. • The switch connects and disconnects the (+) pin and the "headlight" pin. • To make the LED always on, supply 3-12V between the "ground" pin and the "light" pin • To have the LED only on when the switch is on, supply 3-12V to the (+) pin and connect ground to the "ground" pin. • As for the optional protective cover, it will automatically turn off the switch when it is lowered. • NO contact maintained • solder lugs, faston • vertical layout • Led illuminated lever head • 20A @ 12 Vdc • optional protection valve
