LED indicator light SOIN_J Series

threadedwaterproofIK 10

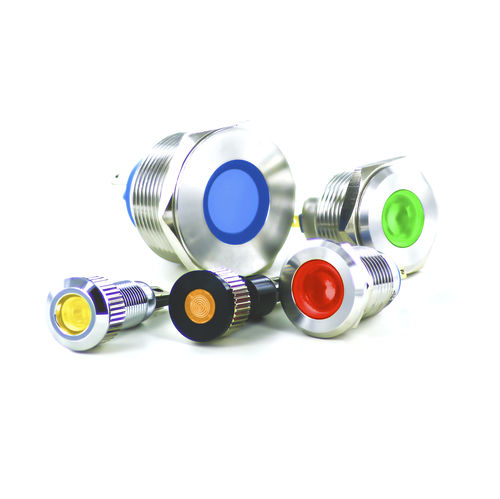

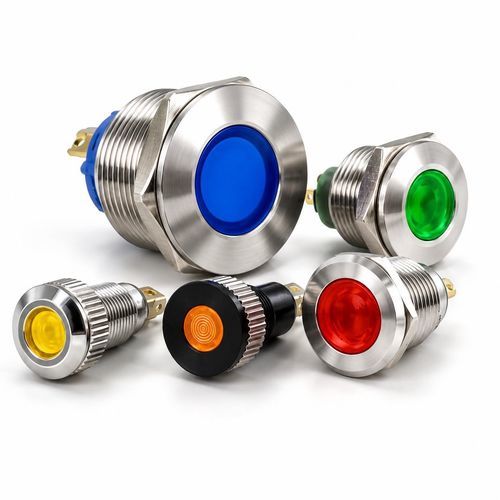

The range of TactHill by Kynoppe Led Indicators shines brightly for high quality lighting and attractive, functional and innovative designs. LED indicators are versatile and can be integrated into an infinite variety of applications. Those LED indicators, equipped with solder or screw terminals, are available in cutouts of 8, 12, 16, 19, 22, 25 and 30mm and provided with a grazing, protruding, concave or bulbous lens. Impossible not to find the light that will highlight your product! • IP67 Waterproof LED indicator. • From 8mm to 30mm panel cutout. • Solder or screw terminals. • Body nickel plated brass, stainless steel or anodized aluminum • Numerous customization options. • High brightness LED available on request shinny, mat or black finishing Screw & solder terminals power supply from 2V to 220V IP67 protection grade specific wiring upon request Operating temperature = from-40°C to +85°C Typical LED life: 50.000 hours Protection grade: IP67 Impact rating: IK10 Vision angle : from 30 to 100°
