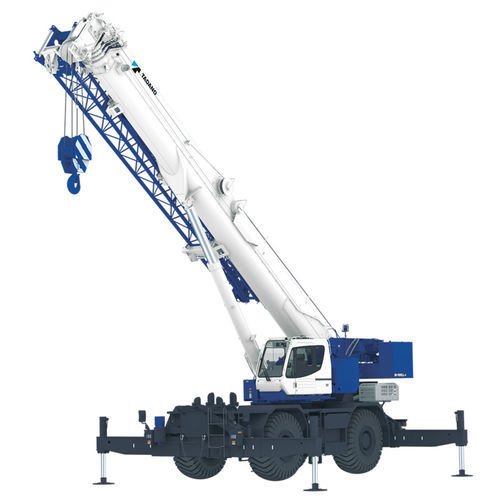

Self-propelled crane GR-800XLL-4
boomtelescopicrough terrain

self-propelled crane
self-propelled crane
self-propelled crane
Add to favorites
Compare this product


Characteristics

Configuration
self-propelled
Structure
boom, telescopic
Operating environment
rough terrain
Applications
lifting
Engine type
diesel engine
Number of axles
2-axle
Other characteristics
hydraulic, with counterweight
Lift capacity

73 t
(80.5 us ton)

Working height

Max.: 51 m
(167'03" )

Min.: 12.8 m
(41'11" )

Driving speed

36 km/h
(22.4 mph)

Crane engine power

209 kW
(284.2 hp)

Total counterweight

11,200 kg
(24,691.773 lb)

Width (base)

3 m
(9'10" )

Length (base)

15 m
(49'02" )

Description

The longest boom in the 100 USt class, more counterweight for the best possible chart and radius, and redesigns enhancing operator comfort. The GR-800XLL-4 holds the crown for the longest boom in the 100 USt / 90.7t class. This crane boasts a 167 ft / 50.9m full power main boom and more counterweight than its little brother to give the operator the best possible chart and radius in the smallest package. This newly-redesigned rough terrain crane also sports creature comforts for the operator such as a tilting cabin, a side ladder that transforms into steps for better access and egress, and even USB chargers.
