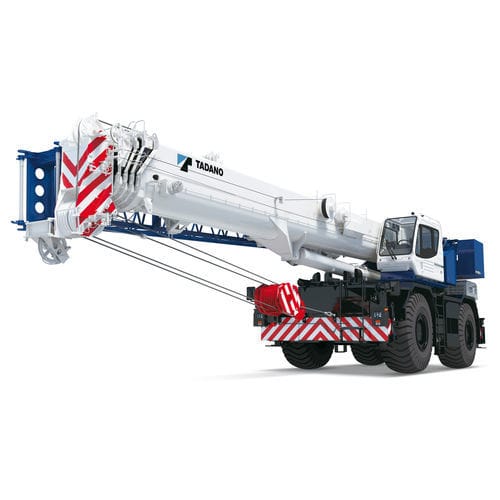

Self-propelled crane GR-1000EX-4
boomrough terrainlifting

self-propelled crane
self-propelled crane
self-propelled crane
self-propelled crane
Add to favorites
Compare this product


Characteristics

Configuration
self-propelled
Structure
boom
Operating environment
rough terrain
Applications
lifting
Engine type
diesel engine
Number of axles
2-axle
Other characteristics
hydraulic, with counterweight, height-adjustable
Lift capacity

100 t
(110.2 us ton)

Working height

Max.: 51 m
(167'03" )

Min.: 12.8 m
(41'11" )

Horizontal reach

48 m
(157'05" )

Driving speed

18 km/h
(11.2 mph)

Crane engine power

209 kW
(284.2 hp)

Total counterweight

11.2 t
(12.346 us ton)

Width (base)

3 m
(9'10" )

Length (base)

15 m
(49'02" )

Description

The longest boom in the 100-tonne class, more counterweight for the best possible chart and radius, and redesigns enhancing operator comfort. Long Boom, Big Power with Creature Comforts The GR-1000EX-4 holds the crown for the longest boom in the 100 t class. This crane boasts a 167 ft / 50.9m full power main boom and more counterweight than its little brother to give the operator the best possible chart and radius in the smallest package. This newly-redesigned rough terrain crane also sports creature comforts for the operator such as a tilting cabin, a side ladder that transforms into steps for better access and egress, and even USB chargers. Tadano’s legendary reputation for quality and innovation is why we lead the lifting industry. Superior engineering, design, and components followed up with top-notch service means a greater rate of return and the lowest owning and operating cost of any crane on the market.
