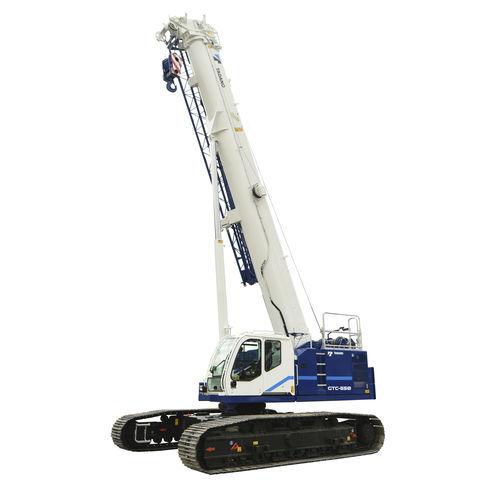

Crawler crane GTC-550boomtelescopicfor construction
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Structure
- boom, telescopic
- Operating environment
- for construction
- Applications
- lifting
- Engine type
- diesel engine
- Other characteristics
- hydraulic, with counterweight, height-adjustable
- Lift capacity
50 t
(55.1 us ton)- Working height
Max.: 33.9 m
(111'02" )Min.: 11 m
(36'01" )- Driving speed
1.3 km/h, 2.9 km/h
(0.8 mph, 1.8 mph)- Crane engine power
194 kW
(263.8 hp)- Swing speed
2 rpm
(12.566 rad.min-1)- Total counterweight
12,791 kg
(28,199.328 lb)- Width (base)
3 m
(9'10" )- Length (base)
13 m
(42'07" )- Total weight
47,128 kg
(103,899 lb)
Description
The GTC-550 features a four-section full power boom, a bi-fold jib with three offsets, and an optional package that increases lifting performance at longer radii.
Full Power Boom with Continuous Telescoping
The GTC-550 is a powerful 55 USt crane featuring a 4-section full power boom that allows continuous telescoping with load to the maximum extended length of 113’ 10”. The main boom is complemented with a 28.9 ft to 49.9 ft bi-fold jib with 5°, 25°, and 45° offsets. An optional Heavy Configuration Counterweight package (28,200 lb) provides increased lifting performance at longer radiuses.
