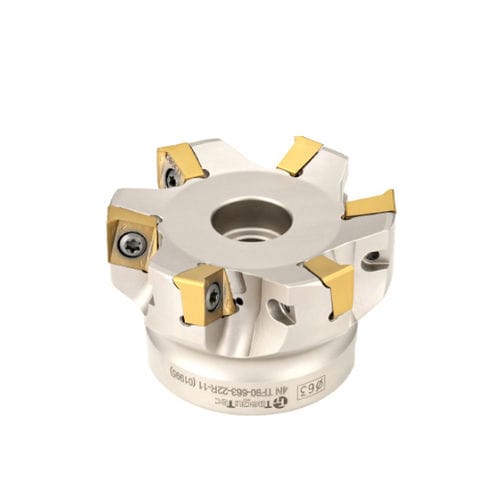

End mill 4NKT

insertfaceshoulder

90° Shoulder Mill 4 Cutting Edge Insert with High Ramping Capability » High productivity with high step milling and high ramping down angle » Double-sided 4 corner insert » Various insert options and cutter range » Very stable machining with strong insert and unique pocket design » True 90° shouldering milling 90 Degree Line, 4 Corner Insert with High Ramping Down Application TaeguTec’s compact four corner double sided insert – the 4NKT insert for end mills, modular end mills and face mill cutters – with its 90⁰ entering angle insert, is the perfect solution for increased productivity of high step down milling and high ramping down operations. Its high positive geometry generates low cutting force while the cross edge insert geometry prevents unexpected insert failure. The insert thickness and high strength combined with the cutter’s wide bottom for improved clamping enables excellent high stability and productive machining. All cutters include an internal coolant supply for efficient chip evacuation that prevents built-up-edges.
