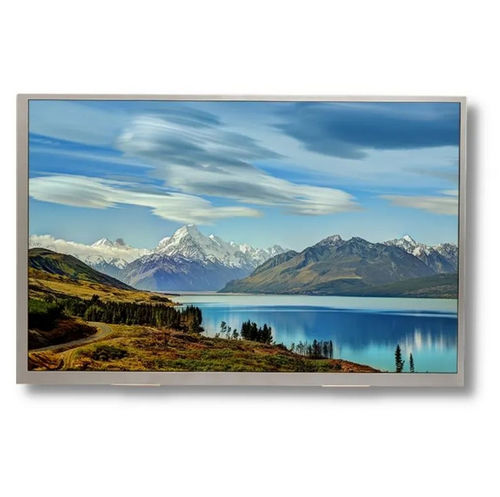

10.1" display module TTX101QHT-01IPScolor1280 x 800
Add to favorites
Compare this product
Characteristics
- Screen type
- IPS
- Type
- color
- Format
- 1280 x 800
- Screen size
- 10.1"
- Applications
- industrial, for medical equipment, HMI
- Interface
- LVDS, HDMI
- Other characteristics
- wide-viewing angle, LED-backlit
Description
TTX101QHT-01 | 10.1 inch IPS TFT LCD | 1280×800 Pixels | LVDS |
This TFT display provide a full view, people could see the quality display image from any angle.
The display can be compatiable with our TFT board TBK101HD-01 to assemble a HDMI display.
Optional custome solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
Diagonal (inch): 10.1"
Resolution (pixel): 1280×800
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch Screen: Optional
Module Dimensions (mm) (W x H x D): 229.46×149.1×2.65
Active Area (mm) (W x H): 216.96×135.6
Luminance (cd/m2): 350
Interfac: LVDS
Driver IC: TBD
Operational Temperature (°C): 0 ~ +50
Storage Temperature (°C): -20 ~ +60
