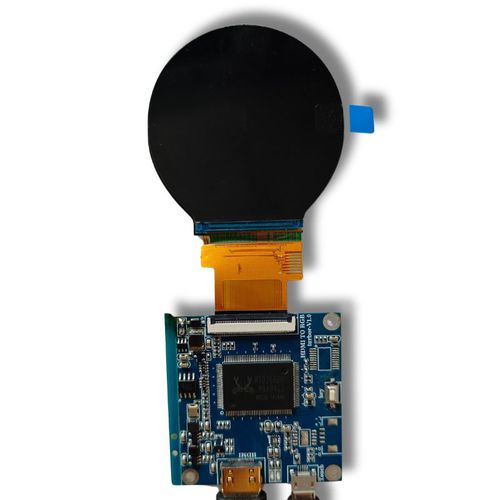

TFT LCD display module TTS021BRS-01

IPS480 x 4802.1"

TTS021BRS-01 | 2.1 inch IPS TFT LCD | Round | 480×480 Pixels | RGB+SPI | The small round display is designed especially for commercial and wearable terminals. This TFT display provides a full view, people could see the quality display image from any angle. This Liquid Crystal Display has a built-in ST7701S controller. Optional custom solution with capacitive or resistive touchscreen. The material is RoHS compliant. Diagonal (inch): 2.1 Resolution (pixel): 480×480 Display Type: IPS Display Mode: Transmissive Optimal View: Full View Touch screen: None Module Dimensions (mm) (W x H x D): 56.18×59.71×2.22 Active Area (mm) (W x H): 53.28×53.28 Luminance (cd/m2): 380 Interface: MIPI Driver IC: ST7701S Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
