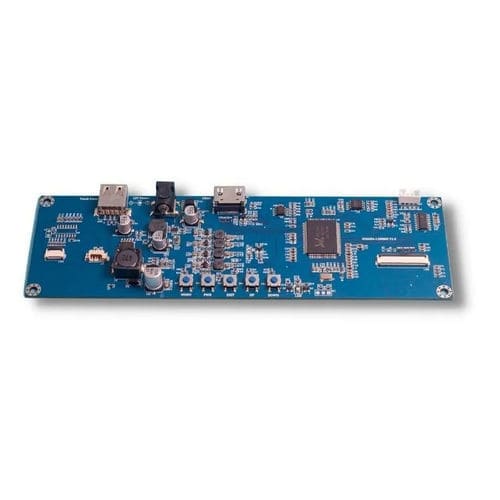

LCD module converter TBK101HD-01

videoLVDS to HDMIboard-mount

TBK101HD-01 TFT Controller Board | LVDS to HDMI converter | Support 10.1- inch TFT Displays, video signals and resolution to 1280×800. Spport Capacitive Touchscreen. The TFT board can be compatible with our 10.1-inch TFT IPS module TTX101QHT-01. The material is RoHS compliant; Custom harsh environment versions available with extended temperature coating; This controller board is for testing, evaluating, production and DIY HDMI TFT display. Function: 10.1″ LCD Controller Supply Voltage (V): 12 Typ Interface: LVDS to HDMI LCM SIZE: 10.1″ TFT LCM Resolution supported (pixel): 1280×800 PCB (W x H x D) (mm): 195.00×60.13×1.6 LCM Backlight Current (mA): 360 Typ Direct Current with LCM (mA): 850 Typ LCM connector: 40PIN-0.5S CTP connector: 4PIN-1.25S HDMI connector: HDMI-019S Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
