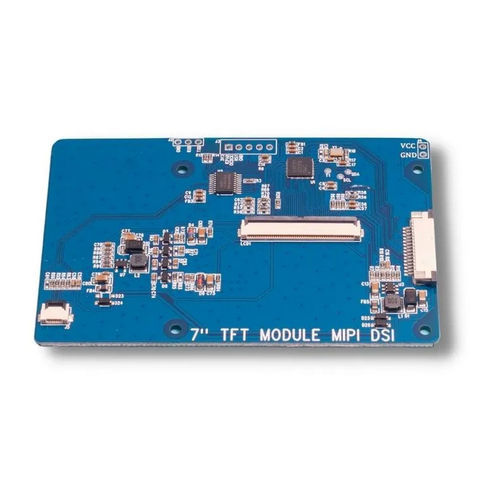

LCD module converter TBK070MI-01

signalRGB to MIPIboard-mount

TBK070MI-01 TFT Display Interface Converter | RGB to MIPI adapter | Support 7.0- inch TFT Displays, resolution to 800×480 | Spport Capacitive Touchscreen | The material is RoHS compliant; Custom harsh environment versions available with extended temperature coating; This accessory board is for interface conversion in test, production and DIY. Function: 7.0″ LCD Controller Supply Voltage (V): 3.3 Typ Interface: RGB to MIPI LCM SIZE: 7.0″ TFT LCM Resolution supported (pixel): 800×480 PCB (W x H x D) (mm): 94.5×63.5×1.6 LCM Backlight Current (mA): 110 Typ Direct Current (without LCM ) (mA): 180 Typ LCM connector: 50PIN-0.5S CTP connector: 6PIN-0.5S MIPI connector: 15PIN-1.0S Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
