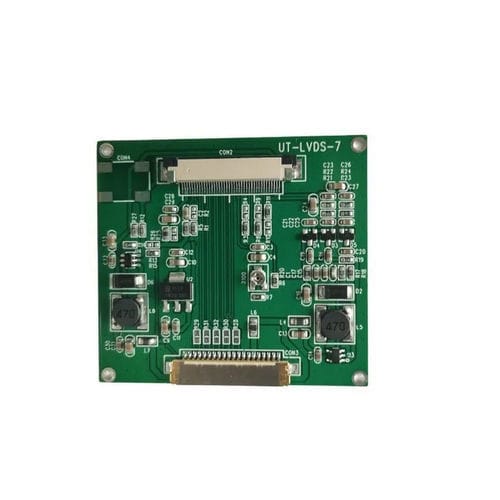

LCD module converter TBJ070LV-01

signalLVDS to LVDScompact

TBJ070LV-01 Scaler Board | Convert LVDS 40-pin to LVDS 20-pin| Support LCD resolution (max.): 800×480, typical screen size: 5.0″/ 7.0″ | Built-in backlight driver and VGL, VGH power supply circuit of the screen, a supplement to the LVDS signal of industrial motherboard | Structure in compact design leaves more space for the terminals | The material is RoHS-compliant. Function: TFT LCD Controller Supply Voltage (V): 5.0 Typ Interface: LVDS 40-pin to LVDS 20-pin LCM SIZE: Multiple LCM Resolution supported (pixel): 800×480 PCB (W x H ) (mm): 55.0×50.0 Direct Current (without LCM ) (mA): 250 Typ LCM connector: 40PIN-0.5S LVDS connector - : 20PIN/DF19-1.0S Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
