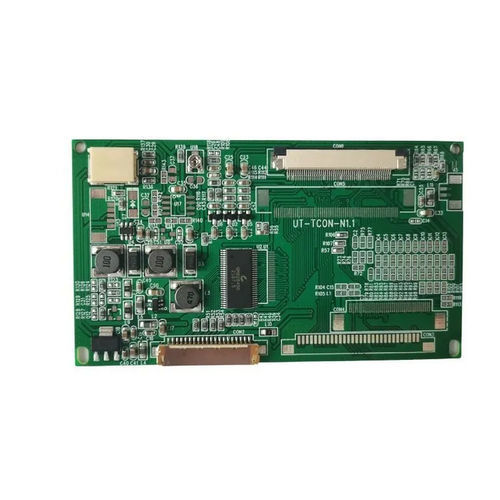

LCD module converter TBJ070LV-02

signalRGB to LVDSboard-mount

TBJ070LV-02 LCD Scaler Board | Convert RGB 60-pin to LVDS | Support LCD resolution (max.): 800×480, typical screen size: 7.0″/ 8.0″ | Built-in backlight driver and VGL, VGH power supply circuit of the screen, convenient to operate | Additional option for general RGB 50-pin interface LCD module | The TFT control board can be compatible with our 7.0-inch TFT module TTX070QHE-01, 9.0-inch TTX090BHE-01, and origin module LSA40AT9001 and A104SN03 V.1. The material is RoHS compliant. Function: TFT LCD Controller Supply Voltage (V): 5.0 Typ Interface: RGB to LVDS LCM SIZE: Multiple LCM Resolution supported (pixel): 800×480 PCB (W x H ) (mm): 93.0×53.0 Direct Current (without LCM ) (mA): 360 Typ LCM connector: 60PIN-0.5S LVDS connector: 20PIN/DF19-1.0S Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
