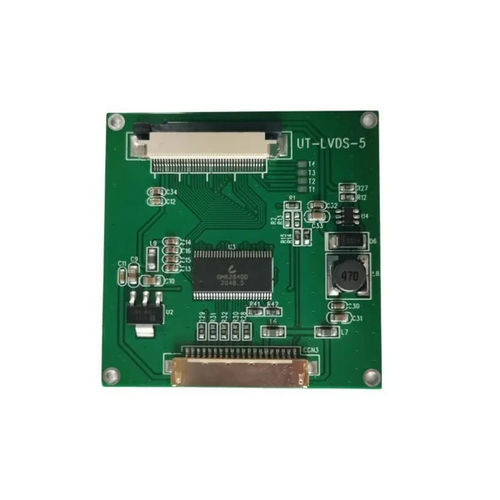

LCD module converter TBJ043LV-01

RGB to LVDSfor automatic controlsboard-mount

TBJ043LV-01 Scaler Board | Convert RGB 40-pin to LVDS | Convert LVDS signal into TTL signal | Support LCD resolution (max.): 480×272, typical screen size: 4.3″/ 5.0″ | Built-in backlight driver, convenient to start the display module | The TFT control board can be compatible with our 4.3-inch TFT module TTX043HHS-02, 5.0-inch TFT module TTX050BHS-01, and origin module AT043TN25 V.2 and TM050RDH03. The material is RoHS compliant. Function: TFT LCD Controller Supply Voltage (V): 5.0 Typ Interface: RGB to LVDS LCM SIZE: Multiple LCM Resolution supported (pixel): 480×272 PCB (W x H ) (mm): 50.0×50.0 Direct Current (without LCM ) (mA): 200 Typ LCM connector: 40PIN-0.5S LVDS connector: 20PIN/DF19-1.0S Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
