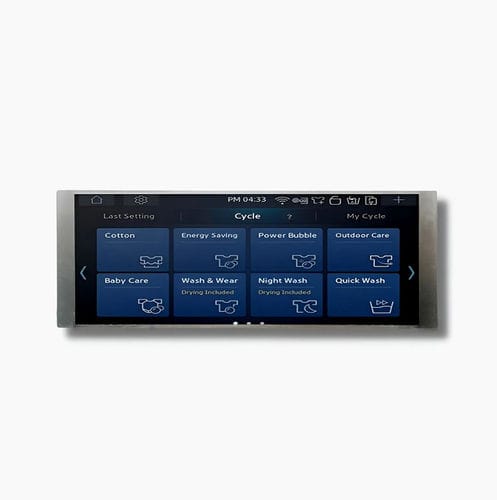

6.86" display module TTW686VVC-01
TFTIPStouch screen

6.86" display module - TTW686VVC-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - TFT / IPS / touch screen
6.86" display module - TTW686VVC-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - TFT / IPS / touch screen
6.86" display module - TTW686VVC-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - TFT / IPS / touch screen - image - 2
6.86" display module - TTW686VVC-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - TFT / IPS / touch screen - image - 3
6.86" display module - TTW686VVC-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - TFT / IPS / touch screen - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
TFT, IPS, touch screen
Format
1280 x 480
Screen size
6.86"
Applications
industrial, for medical equipment, information, for transportation, for vehicles
Interface
MIPI
Configuration/mounting
built-in
Other characteristics
wide-viewing angle, custom

Description

TTW686VVC-01 | 6.86 inch Bar LCD | IPS TFT | 480×1280 Pixels | MIPI | The stretched bar LCD allows more information on the same screen, is popular adopted in the auto industry. This Liquid Crystal Display has a built-in ICNL9707 controller. Optional custom solution for brightness, operation temperature and touch panels. The material is RoHS compliant. Diagonal (inch):6.86″ Resolution (pixel):480×1280 Display Type:IPS Display Mode:Transmissive Optimal View:Full View Touch Screen:Custom Module Dimensions (mm) (W x H x D):66.60x181x4.50 Active Area (mm) (W x H):60.22×160.59 Luminance (cd/m2):300 Interface:MIPI Driver IC:ICNL9707 Operational Temperature (°C):-20 ~ +70 Storage Temperature (°C):-30 ~ +80
