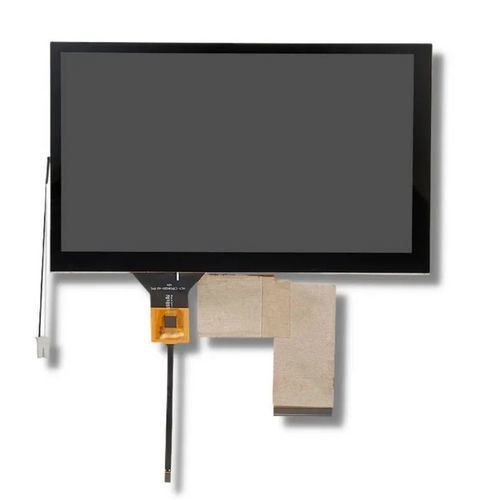

8" display module TTX080SHT-01TFT LCDTN800 x 480
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, TN
- Format
- 800 x 480
- Screen size
- 8"
- Applications
- industrial, for medical equipment
- Interface
- RGB
Description
TTX080SHT-01 | 8 inch TN TFT LCD | 800×480 Pixels | RGB 24bit |
Optional custome solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
Diagonal (inch)：8”
Resolution (pixel)：800×480
Display Type：TN
Display Mode：Transmissive
Optimal View：12:00
Touch Screen：Optional
Module Dimensions (mm) (W x H x D)：192.8×116.9×6.4
Active Area (mm) (W x H)：176.64×99.36
Luminance (cd/m2)：350
Interface：RGB 24bit
Driver IC：TBD
Operational Temperature (°C)：-20 ~ +70
Storage Temperature (°C)：-30 ~ +80
