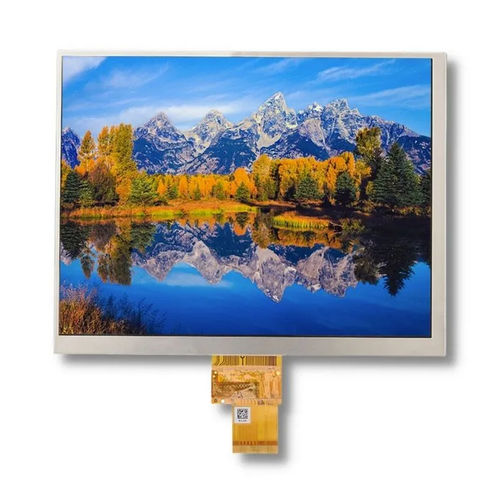

8" display module TTX080QHT-02TFT LCDIPS1024 x 768
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Format
- 1024 x 768
- Screen size
- 8"
- Applications
- industrial, for medical equipment
- Interface
- LVDS
- Other characteristics
- wide-viewing angle, backlit
Description
TTX080QHT-02 | 8.0″ IPS TFT LCD | 1024×768 Pixels | LVDS |
This TFT display provide a full view, people could see the quality display image from any angle.
Optional custome solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
Diagonal (inch)：8”
Resolution (pixel)：1024×768
Display Type：IPS
Display Mode：Transmissive
Optimal View：Full View
Touch Screen: None
Module Dimensions (mm) (W x H x D):174.10×136.10×2.50
Active Area (mm) (W x H): 162.05x121.54
Luminance (cd/m2): 400
Interface: LVDS
Driver IC: TBD
Operational Temperature (°C): -20 ~ +70
Storage Temperature (°C): -30 ~ +80
