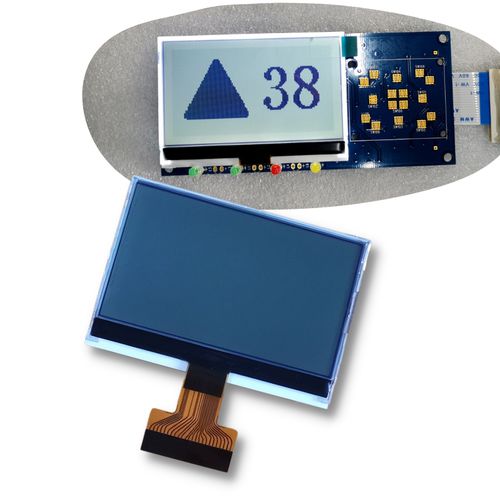

TWW12864H-A0 | 128x64Dots Graphic LCD | FSTN | Transflective| ST7567 | MPU 8Bit | COG |
12864 Monochrome Graphic LCD shows black pixels on white background with 1/64duty and 1/9 bias.
The Transflective FSTN LCD is COG (Chip on Glass) with Controller IC ST7567 and serial interface of MPU 8Bit.
The backlight is designed with buckle feet on both sides and connection pins for a and k.
The material is RoHS-compliant.
Resolution (pixel): 128×64
Display Type: FSTN/ Transflective/ Positive
Backlight: White LED
Backlight connection: - Pin for a, k
Optimal View: 6 O’clock
Voltage(V): 3.3
Module Dimensions (mm) (W x H x D): 72.4×49.7×11.6
Viewing Area(mm) (W x H): 66.0×38.0
Active Area (mm) (W x H): 60.775×32.935
Pixel pitch(mm): 0.475×0.515
Pixel size(mm): 0.45×0.49
Interface: MPU 8Bit
Luminance (cd/m2): 200
Duty: 1/64duty ,1/9 bias
Driver IC: ST7567
IC Package Type: COG
Operational Temperature (°C): -20 ~ +70
Storage Temperature (°C): -30 ~ +80
