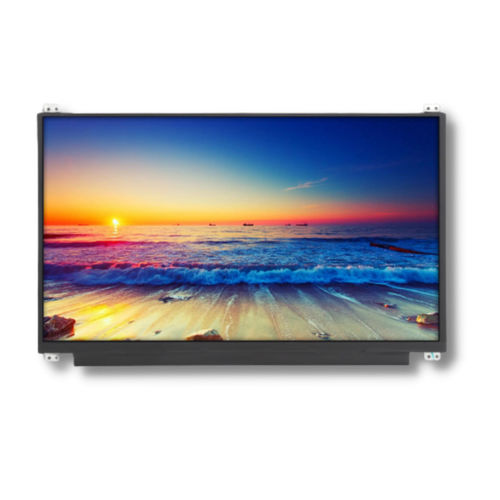

Color display module TTX133BHN-02TFT LCDIPS1920 x 1080
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Type
- color
- Format
- 1920 x 1080
- Screen size
- 13.3"
- Applications
- industrial, for medical equipment
- Interface
- EDP, HDMI
- Width
305.1 mm
(12.0118 in)- Height
178 mm
(7.0079 in)
Description
TTX133BHN-02 | 13.3-inch IPS TFT LCD | HDMI Transfer Option | 1920×1080 Pixels | EDP |
Optional interface transfer to HDMI via the universal controller board (TBJ156HD-01) + eDP cable.
Optional solution with capacitive touchscreen.
The material is RoHS-compliant.
Diagonal (inch):13.3″
Resolution (pixel): 1920×1080
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch Screen: Optional
Module Dimensions (mm) (W x H x D): 305.1*178*2.6
Active Area (mm) (W x H): 293.76*165.24
Luminance (cd/m2): 300
Interface: EDP
Driver IC: TBD
Operational Temperature (°C): 0 ~ +50
Storage Temperature (°C): -10 ~ +60
