TFT LCD display module TTX140BHT-01
IPS1920 x 108014"

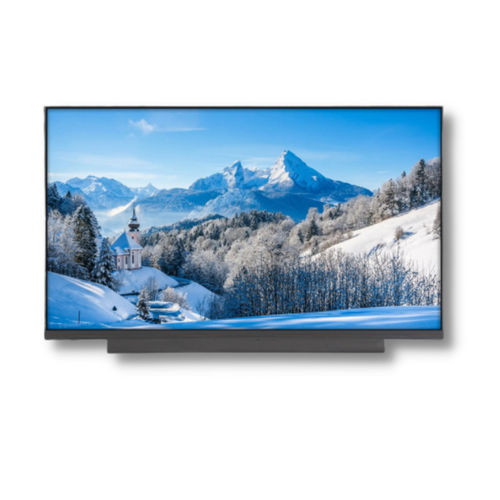

TFT LCD display module - TTX140BHT-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - IPS / 1920 x 1080 / 14"
TFT LCD display module - TTX140BHT-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - IPS / 1920 x 1080 / 14"
TFT LCD display module - TTX140BHT-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - IPS / 1920 x 1080 / 14" - image - 2
TFT LCD display module - TTX140BHT-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - IPS / 1920 x 1080 / 14" - image - 3
TFT LCD display module - TTX140BHT-01 - TAILOR PIXELS TECHNOLOGY CO., LTD. - IPS / 1920 x 1080 / 14" - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, IPS
Format
1920 x 1080
Screen size
14"
Applications
industrial, for medical equipment, HMI
Interface
EDP, HDMI
Width

315.9 mm
(12.437 in)

Height

197.57 mm
(7.7783 in)

Description

TTX140BHT-01 | 14.0-inch IPS TFT LCD | HDMI Transfer Option | 1920×1080 Pixels | EDP | Optional interface transfer to HDMI via the universal controller board (TBJ156HD-01) + eDP cable. Optional solution with capacitive touchscreen. The material is RoHS-compliant. Diagonal (inch): 14″ Resolution (pixel): 1920×1080 Display Type: IPS Display Mode: Transmissive Optimal View: Full View Touch Screen: Optional Module Dimensions (mm) (W x H x D): 315.9*197.57*3.0 Active Area (mm) (W x H): 309.312 *173.988 Luminance (cd/m2): 250 Interface: EDP Driver IC: TBD Operational Temperature (°C): 0 ~ +50 Storage Temperature (°C): -20 ~ +60
