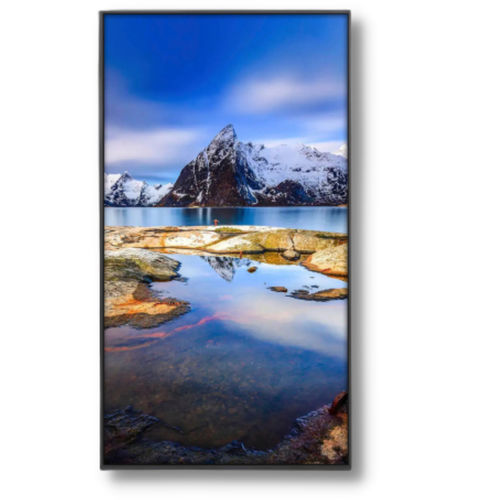

TFT LCD display module TTX215BVT-01IPS1080 x 192021.5"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, IPS
- Format
- 1080 x 1920
- Screen size
- 21.5"
- Applications
- industrial
- Interface
- LVDS
- Width
268.88 mm
(10.5858 in)- Height
493.41 mm
(19.4256 in)
Description
TTX215BVT-01 | 21.5-inch IPS TFT LCD | 1080×1920 Pixels | LVDS |
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in TBD controller.
Optional custome solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
Diagonal (inch): 21.5″
Resolution (pixel): 1080×1920
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch Screen: Optional
Module Dimensions (mm) (W x H x D): 268.88 *493.41 *5.7
Active Area (mm) (W x H): 260.28*478.656
Luminance (cd/m2): 300
Interface: LVDS
Driver IC: TBD
Operational Temperature (°C): -20 ~ +70
Storage Temperature (°C): -30 ~ +80
