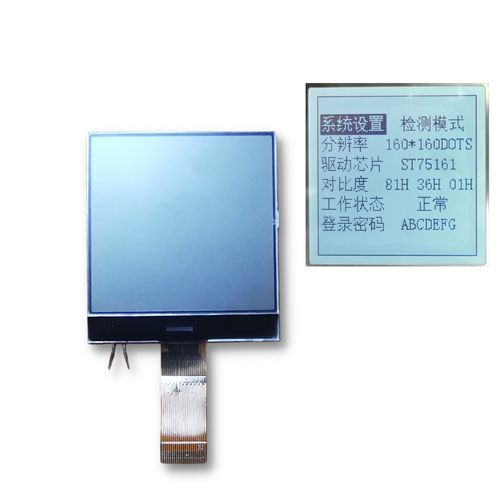

Instrumentation display TWW128128D-A0
FSTNgraphictransflective

instrumentation display
instrumentation display
instrumentation display
instrumentation display
instrumentation display
instrumentation display
Add to favorites
Compare this product


Characteristics

Screen type
FSTN
Type
graphic, transflective
Format
128 x 128
Screen size
2.1"
Applications
industrial, temperature measurement, for flow measurement, humidity measurement, instrumentation
Interface
8080 interface
Other characteristics
LED-backlit
Width

48 mm
(1.8898 in)

Height

53 mm
(2.0866 in)

Description

TWW128128D-A0 | 128×128 Graphical Display | COG FSTN LCD| Transflective | 8080 8bit | 128×128 Graphical LCD is COG (Chip on Glass) with Controller IC UC1617S and interface 8080 8bit. The material is RoHS-compliant. Character generates in English and Chinese and is also optional for all languages in need. Resolution (pixel): 128×128 Display Type: FSTN/ Transflective/ Positive Backlight: White LED Optimal View:6 O’clock Voltage(V):3.3 Module Dimensions (mm) (W x H x D):48.0×53.0×12.3 Viewing Area(mm) (W x H):44.0×40.5 Active Area (mm) (W x H): 38.001×38.001 Pixel pitch(mm): 0.34×0.34 Pixel size(mm): 0.32×0.32 Interface: 8080 8BIT Luminance (cd/m2): 200 Duty: 1/128duty ,1/11bias Driver IC: UC1617S Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
