1.9" display TWW12864K2-A0
FSTNdot-matrixtransflective

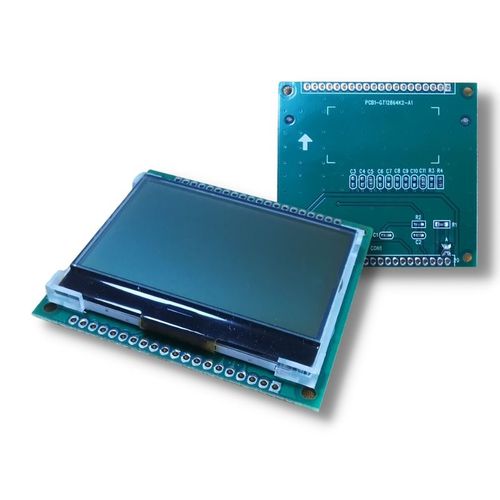

1.9" display - TWW12864K2-A0 - TAILOR PIXELS TECHNOLOGY CO., LTD. - FSTN / dot-matrix / transflective
1.9" display - TWW12864K2-A0 - TAILOR PIXELS TECHNOLOGY CO., LTD. - FSTN / dot-matrix / transflective
1.9" display - TWW12864K2-A0 - TAILOR PIXELS TECHNOLOGY CO., LTD. - FSTN / dot-matrix / transflective - image - 2
1.9" display - TWW12864K2-A0 - TAILOR PIXELS TECHNOLOGY CO., LTD. - FSTN / dot-matrix / transflective - image - 3
1.9" display - TWW12864K2-A0 - TAILOR PIXELS TECHNOLOGY CO., LTD. - FSTN / dot-matrix / transflective - image - 4
1.9" display - TWW12864K2-A0 - TAILOR PIXELS TECHNOLOGY CO., LTD. - FSTN / dot-matrix / transflective - image - 5
Add to favorites
Compare this product


Characteristics

Screen type
FSTN
Type
dot-matrix, transflective
Format
128 x 64
Screen size
1.9"
Applications
industrial, temperature measurement, for the environmental industry, for flow measurement, for pressure measurement
Interface
8080 interface
Other characteristics
LED-backlit
Width

54 mm
(2.126 in)

Height

50 mm
(1.9685 in)

Description

TWW12864K2-A0 | 128×64 dot matrix lcd module | COG FSTN LCD| Transflective | 8080 8bit | 128X64 graphic cog lcd display is soldered on the PCB with pin holes for flexible connection and assembly. The Transflective FSTN LCD is COG (Chip on Glass) with Controller IC ST7567 and interface 8080 8bit. The material is RoHS-compliant. Character generates in English and Chinese and is also optional for all languages in need. Resolution (pixel): 128×64 Display Type: FSTN/ Transflective/ Positive Backlight: White LED Optimal View:12 O’clock Voltage(V):3.3 Module Dimensions (mm) (W x H x D): 54.0×50.0×8.4 Viewing Area(mm) (W x H): 44.0×29.0 Active Area (mm) (W x H): 40.93×24.93 Pixel pitch(mm): 0.32×0.39 Pixel size(mm): 0.29×0.36 Interface: 8080 8BIT Luminance (cd/m2): 200 Duty: 1/64duty ,1/9 bias Driver IC: ST7567 Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80

VIDEO
