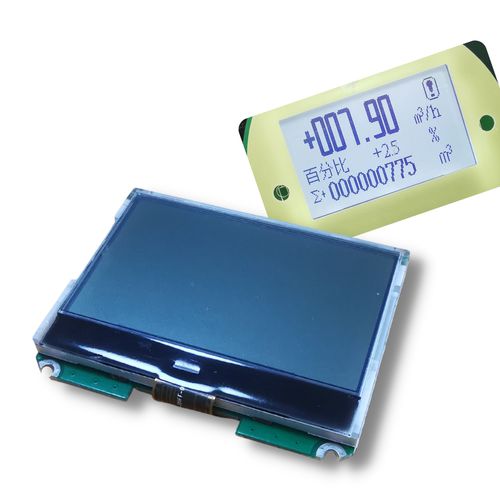

Flow measurement display TWW12864Z-A0

transflectiveFSTNgraphic

TWW12864Z-A0 | 128×64 Graphical LCD display | Transflective LCD | 8080 8bit | 12864 Graphic COG Display goes with adapter board with pin holes for flexible connection The Transflective FSTN LCD is COG (Chip on Glass) with Controller IC ST7765R and interface 8080 8bit. The material is RoHS-compliant. Character generates in English and Chinese and is also optional for all languages in need. Resolution (pixel)：128×64 Display Type：FSTN/Transflective/ Positive Backlight：White LED Optimal View：6 O’clock Voltage(V)：3.3 Module Dimensions (mm) (W x H x D)：59.6×50.6×8.7 Viewing Area(mm) (W x H)：54.3×32.0 Active Area (mm) (W x H)：49.89×27.49 Pixel pitch(mm)：0.39×0.43 Pixel size(mm)：0.36×0.40 Interface：8080 8BIT Luminance (cd/m2)：200 Duty：1/64duty ,1/9 bias Driver IC：ST7765R Operational Temperature (°C)：-20 ~ +70 Storage Temperature (°C)：-30 ~ +80
