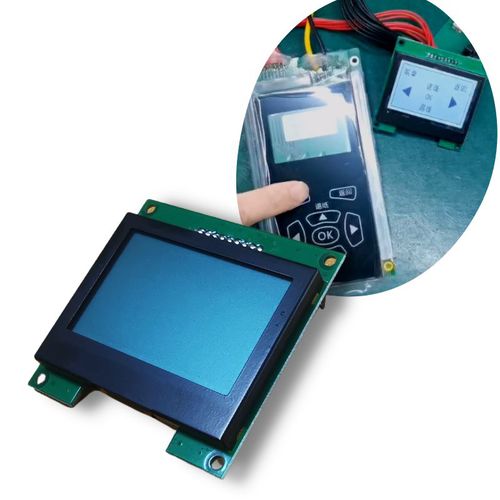

Graphic display TWW12864K-A1
FSTNdot-matrixtransflective

graphic display
graphic display
graphic display
graphic display
graphic display
graphic display
graphic display
Add to favorites
Compare this product


Characteristics

Screen type
FSTN
Type
dot-matrix, graphic, transflective
Format
128 x 64
Screen size
1.9"
Applications
industrial, temperature measurement, for remote control, for weighing devices
Interface
8080 interface
Other characteristics
LED-backlit
Width

54 mm
(2.126 in)

Height

53 mm
(2.0866 in)

Description

TWW12864K-A1 | 128×64 Dot Matrix Graphic LCD | COG LCD| Transflective | 8080 8bit | 12864 Graphic LCD display is assembled with the PCB with connectors in custom connection. The Transflective FSTN LCD is COG (Chip on Glass) with Controller IC ST7565R and interface 8080 8bit. The material is RoHS-compliant. Character generates in English and Chinese and is also optional for all languages in need. Resolution (pixel): 128×64 Display Type: FSTN/ Transflective/ Positive Backlight: White LED Optimal View: 12 O’clock Voltage(V): 3.3 Module Dimensions (mm) (W x H x D): 54.0×53.0×13 Viewing Area(mm) (W x H): 43.8×27.2 Active Area (mm) (W x H): 40.93×24.93 Pixel pitch(mm): 0.32×0.39 Pixel size(mm): 0.29×0.36 Interface: 8080 8BIT Luminance (cd/m2): 200 Duty:1/64duty ,1/9 bias Driver IC:ST7565R Operational Temperature (°C):-20 ~ +70 Storage Temperature (°C):-30 ~ +80
