LCD STN display TWW12864A-A0

graphic128 x 642.9"

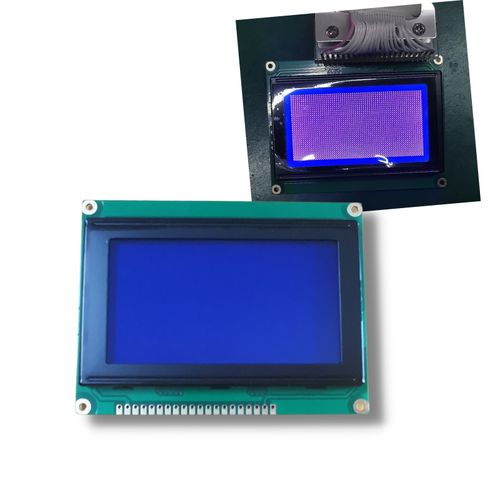

TWW12864A-A0 | 128x64Dots Graphic LCD module | STN | Transmissive | Negative (blue) | 8080 8bit | COB | 12864 Graphic LCD displays graphics in white on blue background with 1/64duty and 1/9 bias. The Transmissive STN LCD is COB (Chip on Board) with Controller IC SBN6400G and interface 8080 8bit. The material is RoHS-compliant. Character generates in English and Chinese and is also optional for all languages in need. Resolution (pixel): 128×64 Display Type: STN/ TRANSMISSIVE/ NEGATIVE Backlight: White LED Optimal View: 6 O’clock Voltage(V): 3.3 Module Dimensions (mm) (W x H x D): 93.0×70.0×14.5 Viewing Area(mm) (W x H): 71.7×39.0 Active Area (mm) (W x H): 66.57X33.2 Pixel pitch(mm)：0.52×0.52 Pixel size(mm)：0.48×0.48 Interface：8080 8bit Luminance (cd/m2)：400 Duty：1/64duty ,1/9 bias Driver IC：SBN6400G IC Package Type：COB Operational Temperature (°C)：-20 ~ +70 Storage Temperature (°C)：-30 ~ +80
