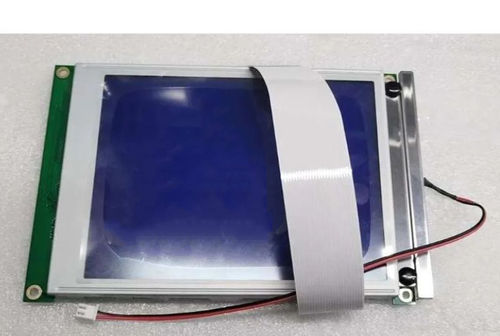

LCD STN display module TWW320240H22-A0

graphicmonochrome320 x 240

TWW320240H22-A0 | 320×240 Graphic LCD Display | STN COB | Transmissive| Negative | RA8835P4N | 320×240 Monochrome Graphic LCD shows graphics and characters by white on blue background, with touch option. The Transflective STN LCD is COB (Chip on Board) with driver RA8835P4N and serial interface 8080 8bit. The material is RoHS-compliant. Character generates in English and Chinese and is also optional for all languages in need. Resolution (pixel): 320×240 Display Type: STN/ Negative/Transmissive Backlight: White LED Optimal View: 6 O’clock Voltage(V) - : 5 Module Dimensions (mm) (W x H x D): 167.4×109.0×14.5 Viewing Area(mm) (W x H): 122.0×92.0 Active Area (mm) (W x H): 115.18×86.38 Pixel Pitch (mm): 0.36×0.36 Pixel Size (mm): 0.345×0.345 Interface: 8080 8bit Luminance (cd/m2): 300 Duty: 1/240duty Driver IC: RA8835P4N IC Package Type: COB Touch Option: Resistive Touch Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
