LED-backlit display module TTH285BRS-01TFTIPScolor
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT, IPS
- Type
- color
- Format
- 480 x 480
- Screen size
- 2.85"
- Applications
- instrumentation, control, for control panels
- Interface
- RGB, MIPI
- Structure
- round
- Other characteristics
- LED-backlit
- Width
73.03 mm
(2.8752 in)- Height
76.48 mm
(3.011 in)
Description

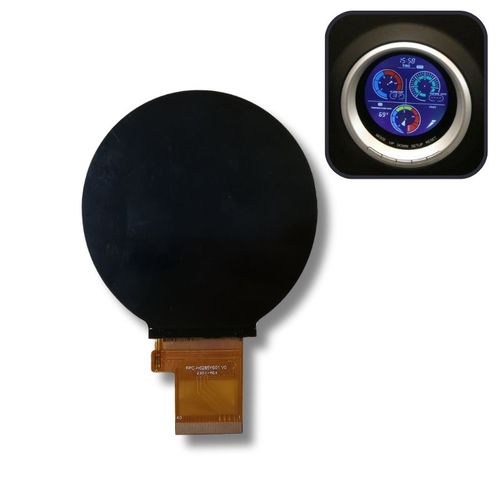

TTH285BRS-01 | 2.85′ IPS LCD | Round | 480×480 Pixels | RGB/ MIPI |
The display is designed with unique outline in round, especially for the control panel interface in appliances.
This Liquid Crystal Display has a built-in ST7701S controller.
Optional custom solution with capacitive touchscreen.
The material is RoHS-compliant.
Diagonal (inch)：2.85
Resolution (pixel)：480×480
Display Type：IPS
Display Mode：Transmissive
Optimal View：Full View
Touch Screen：Custom
Module Dimensions (mm) (W x H x D)：73.03×76.48×2.26
Active Area (mm) (W x H)：70.13×70.13
Luminance (cd/m2)：450
Interface：RGB/MIPI
Driver IC：ST7701S
Operational Temperature (°C)：-20 ~ +70
Storage Temperature (°C)：-30 ~ +80
